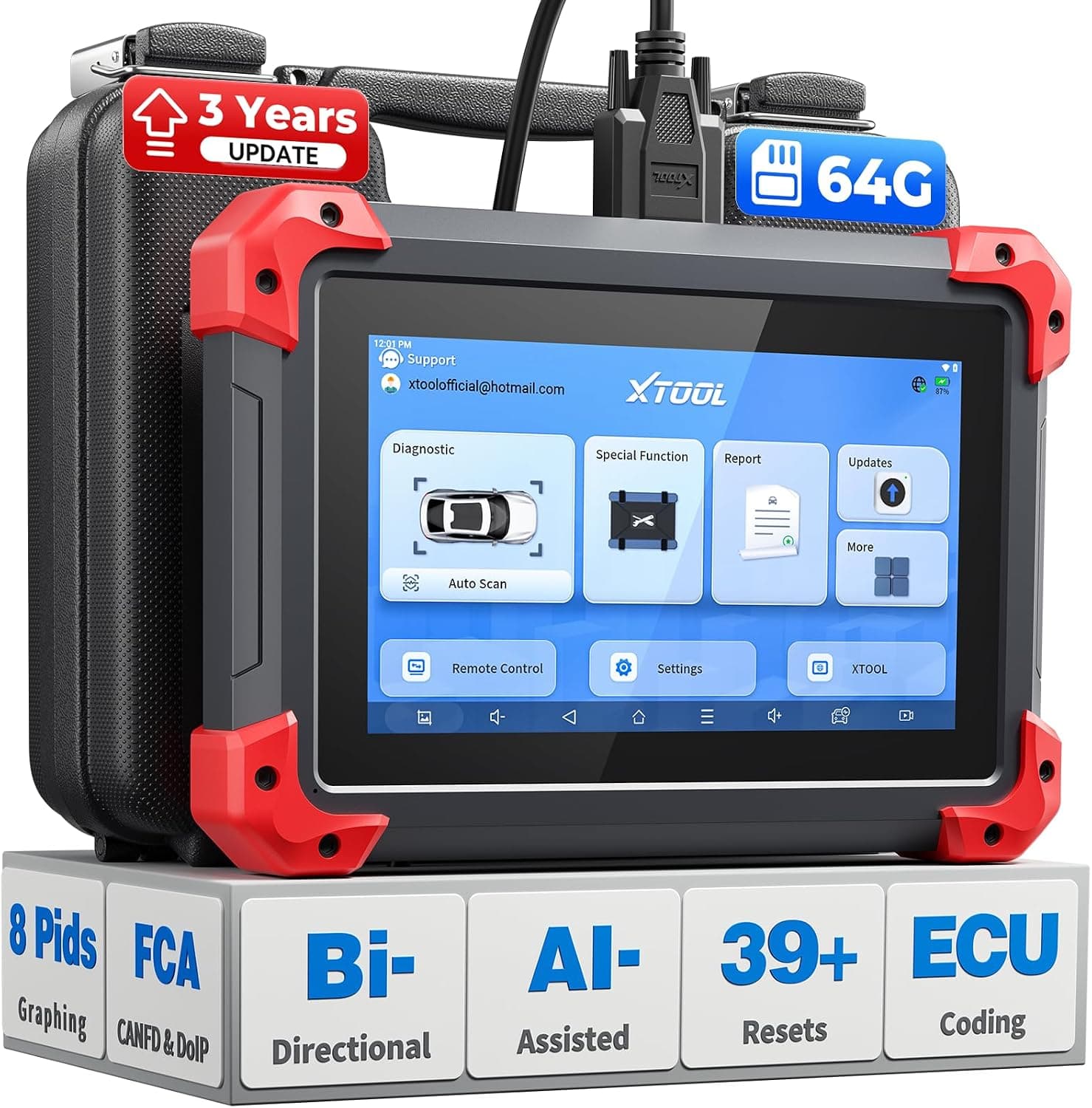

XTOOL D7 Bidirectional Scan Tool, AI-Assisted OBD2 Scanner Diagnostic Tool, 39+ Resets, ECU Coding, Full System Car Scanner with EPB, Injector Test, Throttle Review (2026)

Hardware and interface

The D7 runs on a 7 inch HD touchscreen at 1024 by 600 resolution, powered by a quad-core 1.5GHz Android processor with 2GB of RAM and 64GB of storage, specs closer to a small tablet than a typical handheld code reader. A 2500mAh battery and dual Wi-Fi support let the unit operate somewhat independently of a constant vehicle connection for browsing saved data or updates. That hardware overhead is there to support graphing multiple live data streams at once and running a full Android-based diagnostic app rather than a simple text-only display, which is the tradeoff buyers make for the added screen size and processing power over a pocket-sized reader.

Bidirectional control and ECU coding

The headline feature is bidirectional control, meaning the tool can send commands to vehicle components rather than only reading data back, letting a user actively cycle a fuel injector, run a relay, or test an actuator to confirm it is working rather than guessing from a code alone. XTOOL lists thousands of bidirectional functions across supported vehicles. ECU coding takes this further, letting the tool reprogram certain control unit settings on select brands including Volkswagen, Audi, and Mercedes-Benz, functionality that historically required dealer-level or expensive professional equipment. This is genuinely advanced capability that separates the D7 from consumer code readers focused only on reading and clearing codes.

Reset functions and coverage

The tool includes more than 36 special maintenance reset functions covering common service needs like oil life resets, ABS bleeding, electronic parking brake service, throttle body relearns, and crank sensor relearns, tasks that on many vehicles require a scan tool rather than a simple reset button. It also supports newer vehicle protocols including CAN FD for 2020 and later GM vehicles, DOIP, and FCA AutoAuth for recent Chrysler, Dodge, and Fiat models, protocol support that many budget scanners lack and that becomes more relevant as vehicles on the road get newer. Full OBD2 diagnosis with live data graphing and auto VIN retrieval round out the core feature set.

Updates and ongoing support

XTOOL includes three years of free software updates with the D7, which matters for a tool this vehicle-coverage dependent, since new model years and revised protocols are added to manufacturer software regularly and a tool that stops updating loses relevance quickly. The listing also states two years of hardware warranty coverage with lifetime technical support, a longer commitment than many scan tool makers offer. For a tool in this price and capability class, ongoing update support is arguably as important as the initial feature list, since the value of ECU coding and bidirectional control depends on the tool staying current with newer vehicles over time.

Who actually needs this level of tool

The D7's bidirectional control, ECU coding, and 36-plus reset functions are aimed at serious DIYers, small independent shops, or hobbyists who work on multiple vehicles and want dealer-adjacent diagnostic depth without dealer pricing. Someone who only wants to occasionally check why a check engine light came on, or clear a code before an inspection, is paying for far more capability than they will use, and a simple Bluetooth code reader would serve that narrower need at a fraction of the cost. For anyone doing real diagnostic work, active component testing, or service resets regularly, the D7's feature set and multi-year update commitment make it a genuinely capable tool.
