Best Drill Presses for the Garage Workshop
WEN 12-Inch Benchtop Drill Press, 6.2-Amp Variable Speed Motor with Cast Iron Construction, Laser and LED Work Light (DP1263V)
WEN 12-inch benchtop press with a 6.2A motor, 580 to 3100 RPM variable speed, a 3-1/8 inch spindle travel and a 5/8 inch chuck. The most capable benchtop model here.
WEN 4227T 13-Amp 12-Speed Floor Standing Drill Press
WEN 4227T floor-standing press with a 13A motor, 12 speeds from 150 to 3150 RPM and 4-3/4 inch spindle travel. Built for deep holes and heavy use.
A drill press gives you square, repeatable holes that a handheld drill cannot match, and it holds the work at the exact depth you set. The choice comes down to swing (the distance from the bit to the column, so an 8 inch swing drills 4 inches from the edge), motor power, speed range and whether the press sits on a bench or on the floor. Small 8 inch benchtop models cost the least and handle wood and thin metal. 10 and 12 inch models add power and variable speed. Floor-standing presses give deeper travel and slower speeds for big bits in steel. This guide compares seven presses by the listing specs so you can match swing, travel and footprint to your garage bench.
The short version
We compared 7 picks. Our scores range from 7.0 to 8.1 out of 10.
- Best overall:WEN 12-Inch Benchtop Drill Press, 6.2-Amp Variable Speed Motor with Cast Iron Construction, Laser and LED Work Light (DP1263V). Highest overall score in this guide at 8.1/10.
- Also great value:WEN 10-Inch Benchtop Drill Press, 6.2-Amp Variable Speed Motor with Cast Iron Construction, and Laser (DP1062V). Value score of 8/10, overall 7.8/10.
- Solid build:WEN 4227T 13-Amp 12-Speed Floor Standing Drill Press. Build and materials score of 9/10, overall 8.1/10.
- Feature-rich:Klutch 13in. Floor Drill Press, 3/4 HP, 120V, 16-Speed | Adjustable worktable, accurate wood/metal drilling, 5/8in. chuck capacity, shop-ready operation, durable construction. Features score of 8/10, overall 7.6/10.
Scores are our editorial assessment, not customer ratings. How we score
- 1.WEN 12-Inch Benchtop Drill Press, 6.2-Amp Variable Speed Motor with Cast Iron Construction, Laser and LED Work Light (DP1263V)8.1/10See on AmazonCheck price
- 2.WEN 4227T 13-Amp 12-Speed Floor Standing Drill Press8.1/10See on AmazonCheck price
- 3.WEN 10-Inch Benchtop Drill Press, 6.2-Amp Variable Speed Motor with Cast Iron Construction, and Laser (DP1062V)7.8/10See on AmazonCheck price
- 4.Klutch 13in. Floor Drill Press, 3/4 HP, 120V, 16-Speed | Adjustable worktable, accurate wood/metal drilling, 5/8in. chuck capacity, shop-ready operation, durable construction7.6/10See on AmazonCheck price
- 5.SKIL 6.2 Amp 10 In. 5-Speed Benchtop Drill Press with Laser Alignment & Work Light - DP9505-007.4/10See on AmazonCheck price
- 6.WEN 2.3-Amp 8-Inch 5-Speed Cast Iron Benchtop Drill Press (4206T)7.2/10See on AmazonCheck price
- 7.VEVOR 8-Inch Benchtop Drill Press 2.5 Amp Tabletop Bench Drilling Machine | for Wood Metal, 750 / 1140 / 1740 / 2340 / 3200 RPM Adjustable Speed, 0-45° Tilting Worktable, with LED Work Light7.0/10See on AmazonCheck price

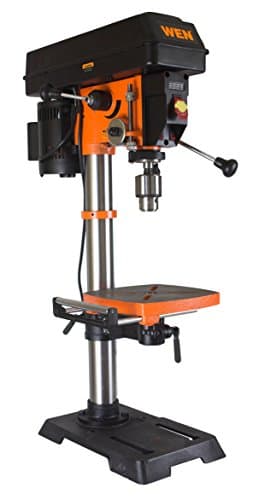

#1WEN 12-inch benchtop press with a 6.2A motor, 580 to 3100 RPM variable speed, a 3-1/8 inch spindle travel and a 5/8 inch chuck. The most capable benchtop model here.
Fit for the job 8/10 · Features and specs 9/10 · Build and materials 8/10 · Value 7/10
- + 12 inch swing and 3-1/8 inch travel handle larger and thicker stock
- + 5/8 inch chuck takes bigger bits than the 1/2 inch chucks on the smaller presses
- + Includes laser, overhead light, depth stop and a table roller extension
- - About 85 pounds and 36.6 inches tall, so it needs a dedicated, strong bench
- - Costs more than twice as much as the entry-level 8 inch presses

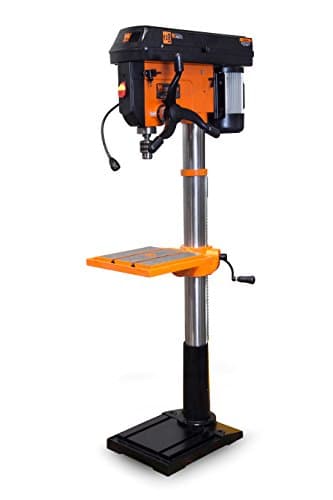

#2WEN 4227T floor-standing press with a 13A motor, 12 speeds from 150 to 3150 RPM and 4-3/4 inch spindle travel. Built for deep holes and heavy use.
Fit for the job 8/10 · Features and specs 9/10 · Build and materials 9/10 · Value 6/10
- + Low 150 RPM end of the range suits large bits and metal
- + 4-3/4 inch spindle travel drills through 4x4 stock more easily
- + 14 by 14 inch cast iron table pivots 45 degrees each way
- - About 214 pounds and 63 inches tall, so it needs real floor space and help to move
- - Highest price in the guide, more machine than most hobby garages need

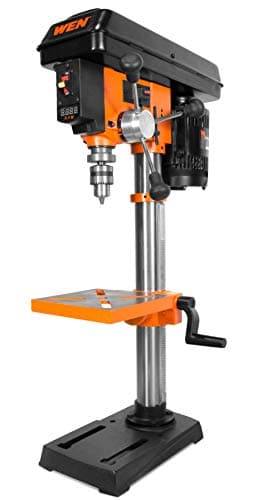

#3WEN 10-inch benchtop press with a 6.2A motor, mechanical variable speed from 530 to 3100 RPM and a digital speed readout. Speed changes happen without moving a belt.
Fit for the job 8/10 · Features and specs 8/10 · Build and materials 7/10 · Value 8/10
- + Variable speed from 530 to 3100 RPM is set with a lever, no belt changes
- + Digital RPM readout shows the actual spindle speed
- + Laser, depth stop and a 45 degree beveling table, plus a two-year warranty
- - At 57 pounds it needs a sturdy bench and is awkward to move
- - 10 inch swing still limits how far from the edge you can drill

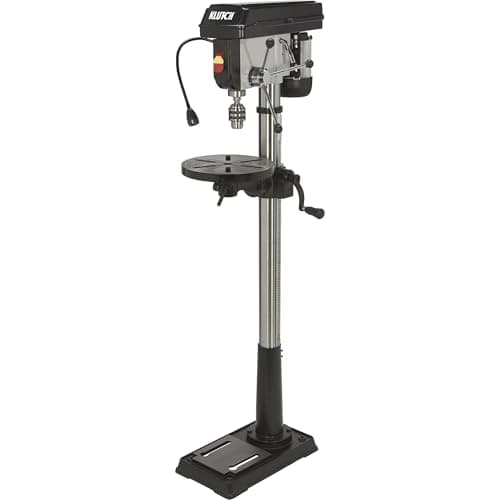

#4Klutch 13-inch floor-standing press with a 3/4 HP motor, 16 speeds and a 5/8 inch chuck. Stands on its own, so it needs no bench and frees up bench space.
Fit for the job 8/10 · Features and specs 8/10 · Build and materials 7/10 · Value 7/10
- + Floor-standing frame frees bench space and gives more room under the chuck
- + 16 speeds and 1 inch maximum drilling capacity suit larger bits and metal
- + 3 1/4 inch stroke and a 45 degree tilting table add range
- - Needs a permanent floor spot in the garage and is heavy to relocate
- - Changing speeds means moving the belt across a stepped pulley set

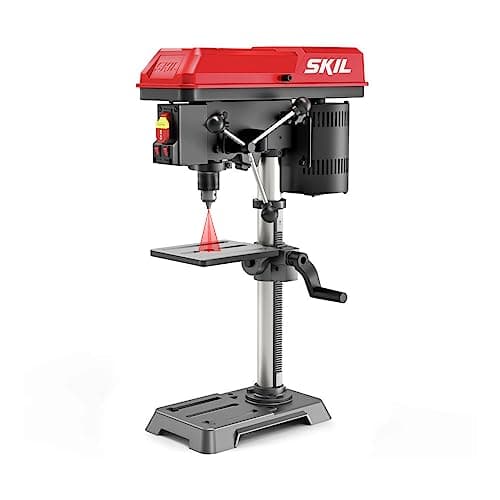

#5SKIL 10-inch benchtop press with a 6.2A induction motor, 5 speeds from 610 to 2800 RPM, laser alignment and an adjustable depth stop. A step up in power from the 8 inch models.
Fit for the job 8/10 · Features and specs 7/10 · Build and materials 7/10 · Value 7/10
- + 6.2A induction motor has more reserve for metal and hardwood than the 2.3A presses
- + Laser alignment shows where the bit will land on the workpiece
- + Adjustable depth stop and table height make repeat holes easier
- - Speeds are changed on a belt, not with a variable dial
- - Listing gives little detail on table size or tilt range, so check before buying
#6WEN 8-inch benchtop press with a 2.3A induction motor and 5 speeds from 750 to 3200 RPM. A low-cost way to get square, repeatable holes in wood and light metal.
Fit for the job 7/10 · Features and specs 7/10 · Build and materials 7/10 · Value 8/10
- + 5 belt-change speeds from 750 to 3200 RPM cover wood bits and slower metal drilling
- + Cast iron construction with a 6.5 by 6.5 inch table that bevels 45 degrees each way
- + Compact 23 inch height and 7 by 11 inch base fit a small garage bench
- - 8 inch swing and 2 inch spindle travel limit the size and depth of work
- - Speed changes mean moving the belt by hand, which is slower than a dial

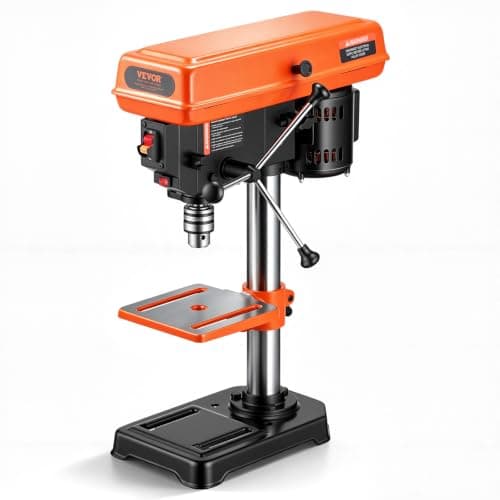

#7VEVOR 8-inch benchtop press with a 2.5A induction motor, 750 to 3200 RPM in 5 steps, a 0 to 45 degree tilting table and an LED work light. The lowest price in this guide.
Fit for the job 7/10 · Features and specs 7/10 · Build and materials 6/10 · Value 8/10
- + Built-in LED work light helps in a dim garage corner
- + Depth stop and 2 inch spindle travel let you set repeatable hole depths
- + Lowest listed price here for a 5-speed, 1/2 inch chuck press
- - 8 inch swing is the smallest size in this guide, so it suits small parts only
- - Lesser-known brand with limited detail in the listing about the table and base material
Before you buy: trade-offs we flagged
No pick is perfect. These are the main compromises we noted for the top products in this guide, so you can check they will not matter for you.
- About 85 pounds and 36.6 inches tall, so it needs a dedicated, strong bench (WEN 12-Inch Benchtop Drill Press, 6.2-Amp...)
- About 214 pounds and 63 inches tall, so it needs real floor space and help to move (WEN 4227T 13-Amp 12-Speed Floor Standing...)
- At 57 pounds it needs a sturdy bench and is awkward to move (WEN 10-Inch Benchtop Drill Press, 6.2-Amp...)
- Needs a permanent floor spot in the garage and is heavy to relocate (Klutch 13in. Floor Drill Press, 3/4 HP, 120V,...)
- Speeds are changed on a belt, not with a variable dial (SKIL 6.2 Amp 10 In. 5-Speed Benchtop Drill...)
- 8 inch swing and 2 inch spindle travel limit the size and depth of work (WEN 2.3-Amp 8-Inch 5-Speed Cast Iron Benchtop...)
Frequently asked questions
›What is the best choice among drill presses for the garage workshop?
WEN 12-Inch Benchtop Drill Press, 6.2-Amp Variable Speed Motor with Cast Iron Construction, Laser and LED Work Light (DP1263V) is our top overall pick. WEN 12-inch benchtop press with a 6.2A motor, 580 to 3100 RPM variable speed, a 3-1/8 inch spindle travel and a 5/8 inch chuck. The most capable benchtop model here. It earns our score of 8.1/10, based on fit for the job, features, build and value.
›What is a good budget option?
WEN 4227T 13-Amp 12-Speed Floor Standing Drill Press is the strongest low-cost pick in this guide. WEN 4227T floor-standing press with a 13A motor, 12 speeds from 150 to 3150 RPM and 4-3/4 inch spindle travel. Built for deep holes and heavy use.
›How much should I expect to spend?
Picks in this guide span See on Amazon price bands (roughly: $ = under $30, $$ = $30 to $100, $$$ = over $100). We never display exact prices because they change constantly, so the buttons above always show Amazon's current price.
›How were these products chosen?
We shortlist products that fit the job this guide solves and compare their published specifications, such as size, capacity, materials and what is included. Each pick gets an editorial score out of 10 for fit, features, build and value, and we write the pros and cons from those details. Our score is not an Amazon customer rating. We earn a commission if you buy through our links, which never affects the ranking.
Garage Setup Hub independently selects every product; we may earn a commission from links above.
